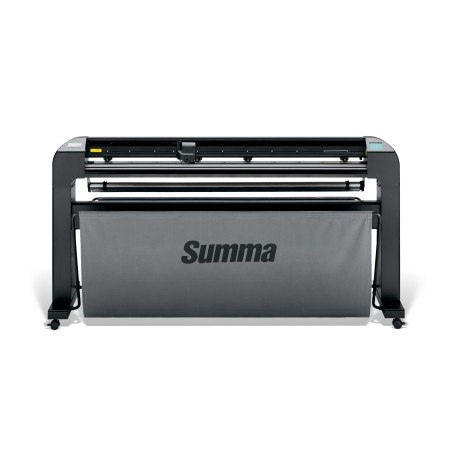

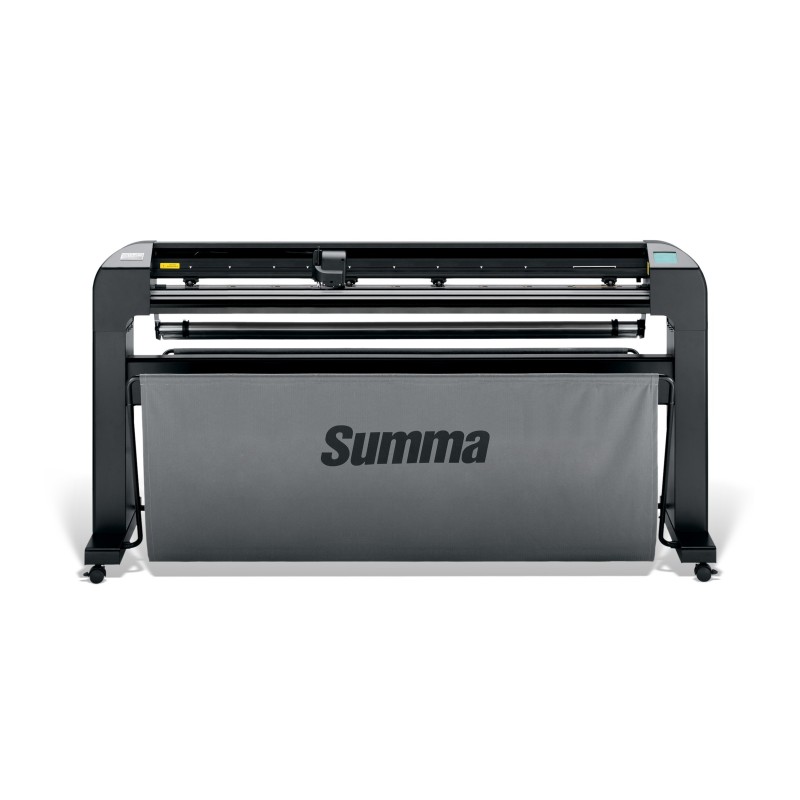

S2Class Tangential 140cm OposCam
- Write a review
S Class 2 140 T-Series, 1.35m tangential knife cutter with integral stand andbasket and sheet cut-off system.Equipped with OPOS-CAM (Camera Control included).
| Model | S140 T4 |
|---|---|
| Cut Type | TRUE TANGENTIAL CUTTING |
| Tool Compatibility | BLADE, PEN, POUNCE TOOL |
| Cut Widths | S140 T - 135 CM EXTENDED MODE: WIDTH OF THE MATERIAL |
| Cut Speed | 1000 MM/S AXIAL MAXIMUM 1414 MM/S RADIAL MAXIMUM |
| Cut Force | 0-600 GRAMS, IN 5 GRAM STEPS |
| Connectivity | USB & RS-232 |
| Standard Accessories | WINPLOT OR MACSIGN CUT SOFTWARE, CUTTER CONTROL PARAMETER SOFTWARE, CAMERA CONTROL MARKER RECOGNITION SOFTWARE 2 STANDARD BLADES, HOLDER AND NOSEPIECE, 1 THICK MATERIAL BLADE AND NOSEPIECE, BALLPOINT PEN, POUNCE TOOL AND HOLDERS |
| Dimensions & weight |
S140 T4:
Equipment: 202 x 68 x 111 cm - 66 Kg
Shipment: 212 x 56 x 67 cm - 98 Kg |
Standard Delivery:
Core holders (2), power cable, USB cable, standard knives(2), standardknife holder, standard nose piece, sandblast knife and nose piece, dragknifeholder (incl. dragknife), ballpoint holder (incl. pen), pouncing pin and holder,Operation manual & quick start (English, French, German, Italian, Dutch &Spanish), Summa Cutter Control soft, WinPlot and MacSign Cut.
S2TC140-2E
