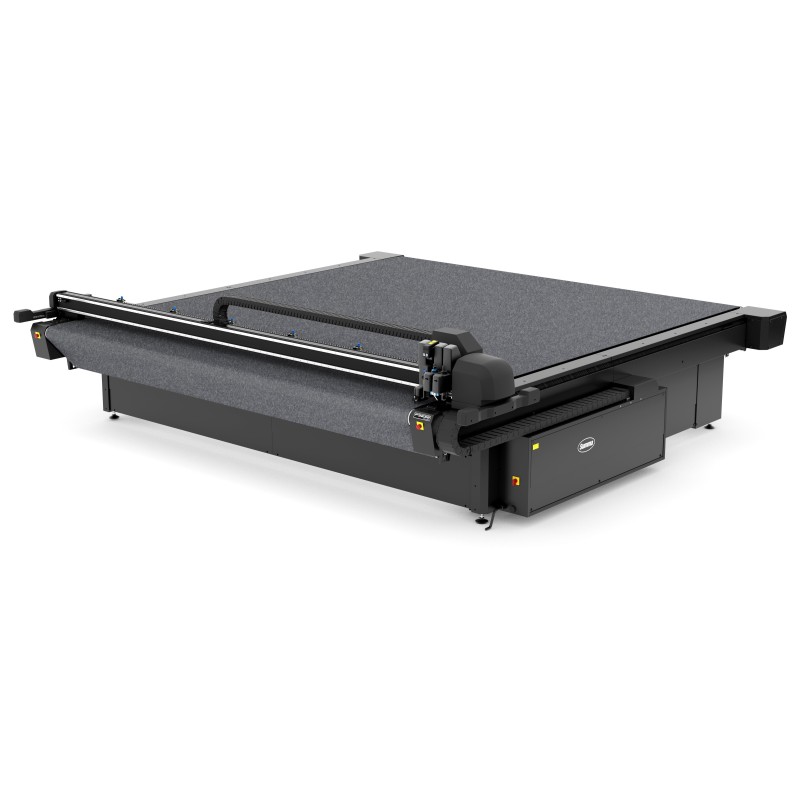

Flat table Summa F 3232
- Write a review
| MODEL | |
| MODELS |  |
 |
 |
|
| CUTTING AREA | 104 in. (265 cm) wide x 120 in. (305 cm) long; up to 164 ft. (50 m) long in multi panel | |||
| MEDIA WIDTH | Up to 106 in. (270 cm) | |||
| MULTI PANEL* | 1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required | |||
| REPEATABILITY | Within ± 0.05 mm on plots | |||
| ACCURACY | 0.05 % of move or 0.05 mm, whichever is greater | |||
| SPEED | Up to 39 in./sec (1000 mm/sec) | |||
| ACCELERATION | Up to 1 G | |||
| CLEARANCE* | 1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting matt or conveyor belt | |||
| MAXIMUM ALLOWED FORCES | Vertical: 200 Newton, Horizontal: 200 Newton | |||
| MAXIMUM TABLE LOAD | 10 lb/ft2 (50 kg/m²) | |||
| CONNECTIVITY | USB | |||
| POWER REQUIREMENTS | 3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N | |||
| DIMENSIONS | 137 x 161 x 48 in. (349 x 410 x 122 cm) | |||
| WEIGHT | 3970 lbs (1800 kg) | |||
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) | |||
| STANDARD ACCESSORIES | Drag Module, Conveyor System, Roll-Feed System, Safety Beam System, Pneumatic Pack, wireless controller w/ charger, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), CD w/ manuals and drivers, SummaFlex Pro. | |||
| OPTIONAL ACCESSORIES | Tangential Module, F Series Routing System, HF Routing System, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, production software; Automated Depth Control left (Upgrade Kit). | |||
F3232
