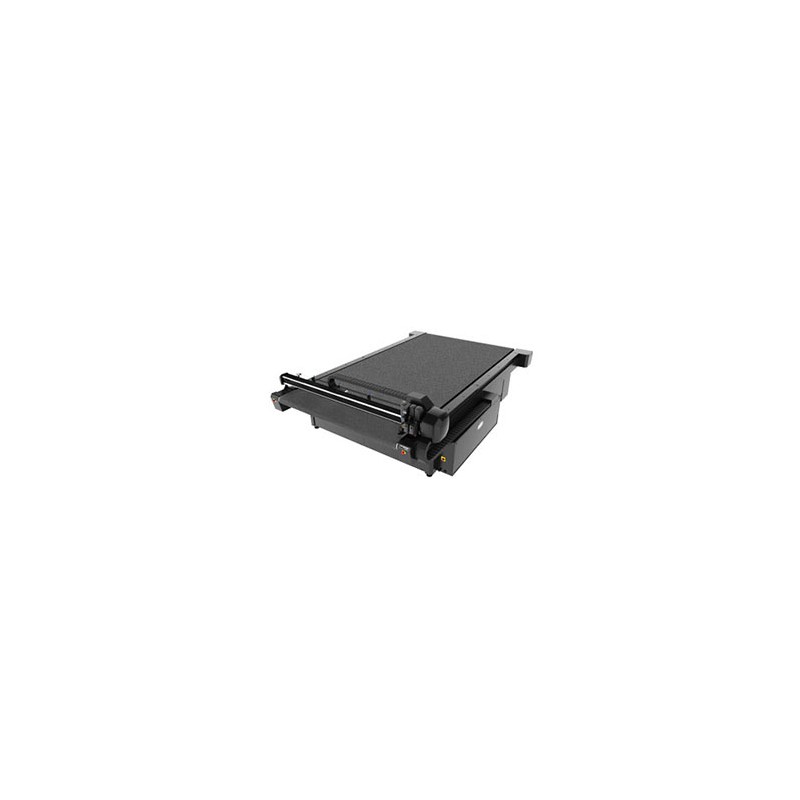

Flat table Summa F 1832

F1832 Logo

Quantity

Add to wishlist

Política de seguridad

(editar con el módulo de Información de seguridad y confianza para el cliente)

Política de entrega

(editar con el módulo de Información de seguridad y confianza para el cliente)

Política de devolución

(editar con el módulo de Información de seguridad y confianza para el cliente)

Guarantee safe & secure checkout

MODEL

MODELS
CUTTING AREA	72 in. (184 cm) wide x 126 in. (320 cm) long; up to 164 ft. (50 m) long in multi panel
MEDIA WIDTH	Up to 75 in. (190 cm)
MULTI PANEL*	1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required
REPEATABILITY	Within ± 0.05 mm on plots
ACCURACY	0.05 % of move or 0.05 mm, whichever is greater
SPEED	Up to 39 in./sec (1000 mm/sec)
ACCELERATION	Up to 1 G
CLEARANCE*	1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting matt or conveyor belt
MAXIMUM ALLOWED FORCES	Vertical: 200 Newton, Horizontal: 200 Newton
MAXIMUM TABLE LOAD	10 lb/ft2 (50 kg/m²)
CONNECTIVITY	USB
POWER REQUIREMENTS	3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N
DIMENSIONS	137 x 161 x 48 in. (349 x 410 x 122 cm)
WEIGHT	3700 lbs (1680 kg)
